MACNEIL NOMAD

Designed in Canada

HI-TEN. TWO COLORS. ONE SIZE

We are excited to present you the Nomad complete line. Hi-Ten frame and hi-Ten tapered legs 30mm offset fork and 8.75" rise bars. Tubular chromoly 3pc, 8 spline, 170mm cranks. Make this bike yours, contact your local bike shop!

Previous Next

SPECIFICATIONS

Frame - Hi-Ten
Fork - Hi-Ten w/tapered legs, 30mm offset
Bars - Hi-ten w/8.75" rise
Grips - Flangeless 140mm
Stem - Alloy top load w/50mm reach
Headset - Integrated 1-1/8"
Brakes - Alloy u-brake
Cranks - Tubular chromoly 3pc 170mm, 8 Spline
Bottom Bracket - Mid sealed
Pedals - Wellgo plastic
Sprocket - Steel 25T
Front Hub - Alloy sealed bearing w/10mm axle
Rear Hub - Sealed cassette w/10mm axle
Driver - 9T
Front Rim - Single wall 36H
Rear Rim - Single wall 36H
Seat - Fat padded combo with embossed MacNeil logo
Seat Post - Integrated with seat
Front Tire - MacNeil Slasher 20 X 2.4
Rear Tire - MacNeil Slasher 20 X 2.4

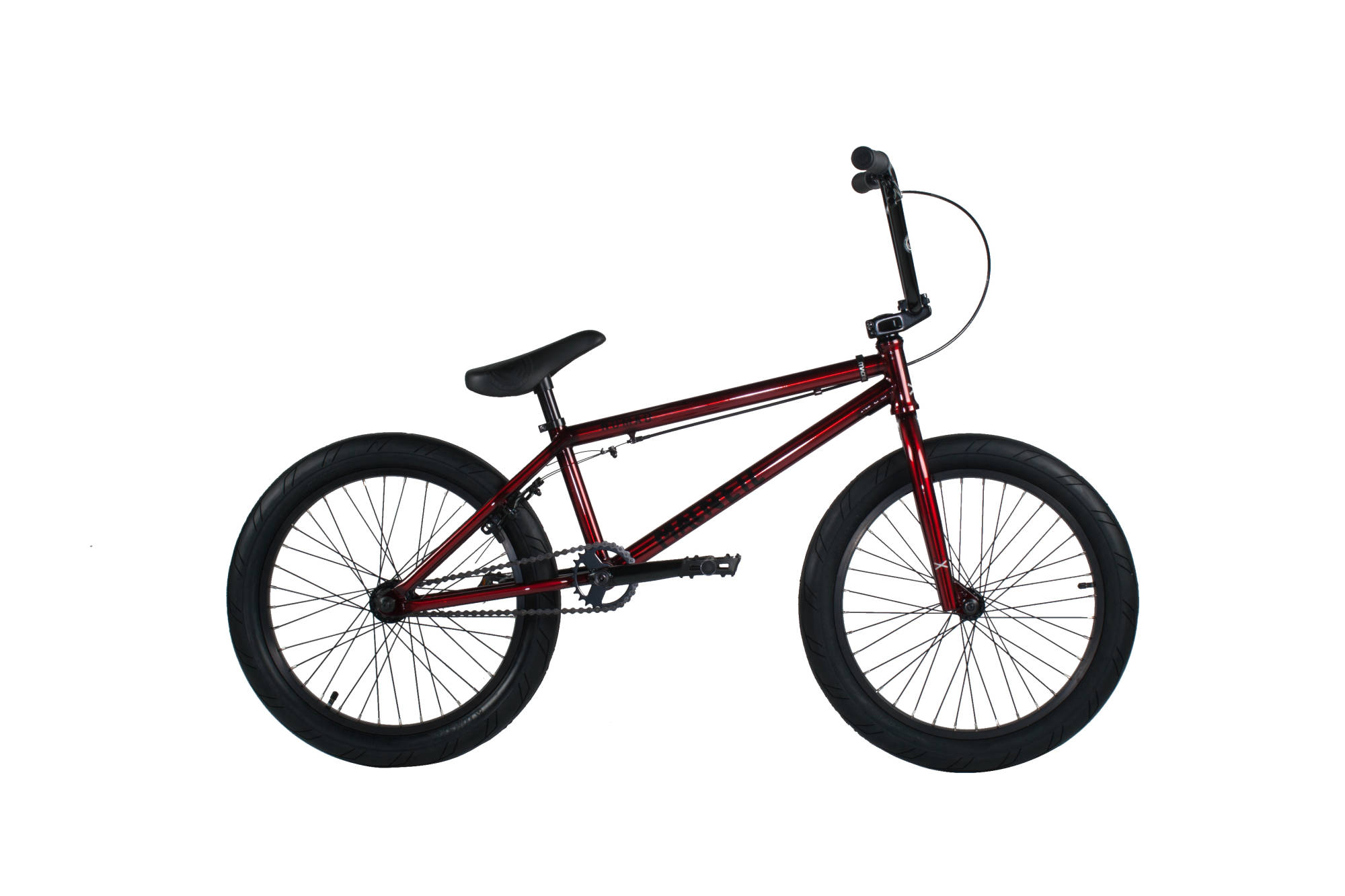

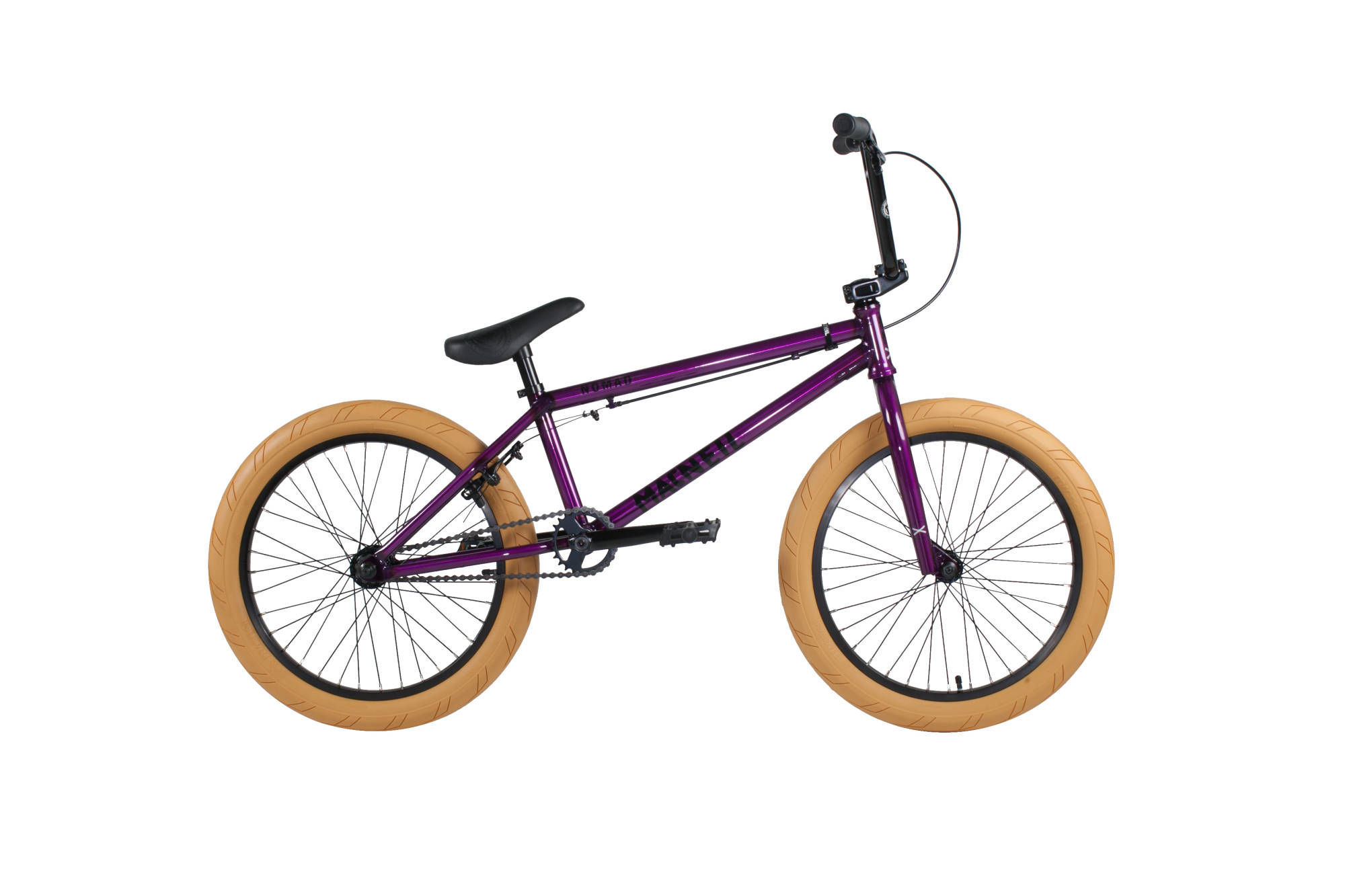

Colors:Trans purple, Trans red

GEOMETRY

Top Tube 20.75"
Head-tube angle - 75°
Seat-tube angle - 71°
Chainstay 13.25"
Stand over height - 8.75"
Weight - 11.6kg / 25.5lbs
