Parts

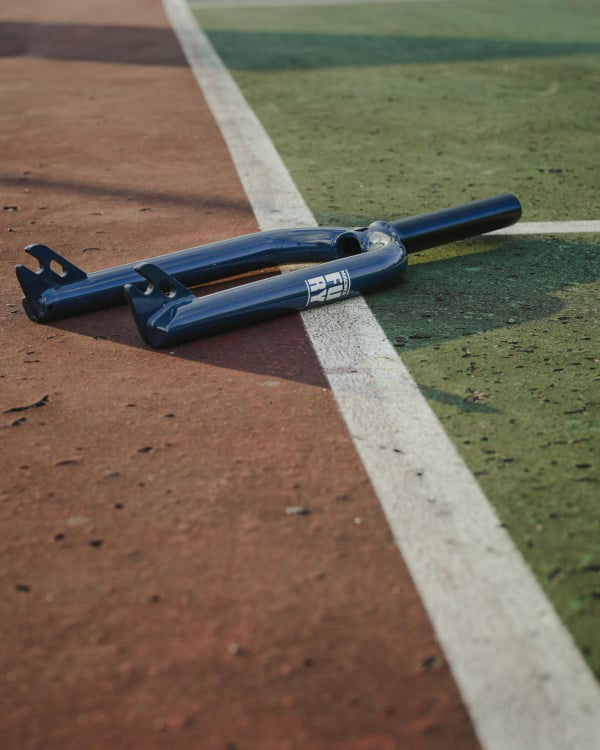

Fury Light Fork

100% heat treated 4130 chromoly. Butted and tapered fork legs, integrated headset race, one-piece machined steer tube with special flat wall for extra strength. 4.5mm thick investment cast dropouts, 10mm only, 28mm offset. Clearance for massive tires and a bent rim.

Weight: 800g

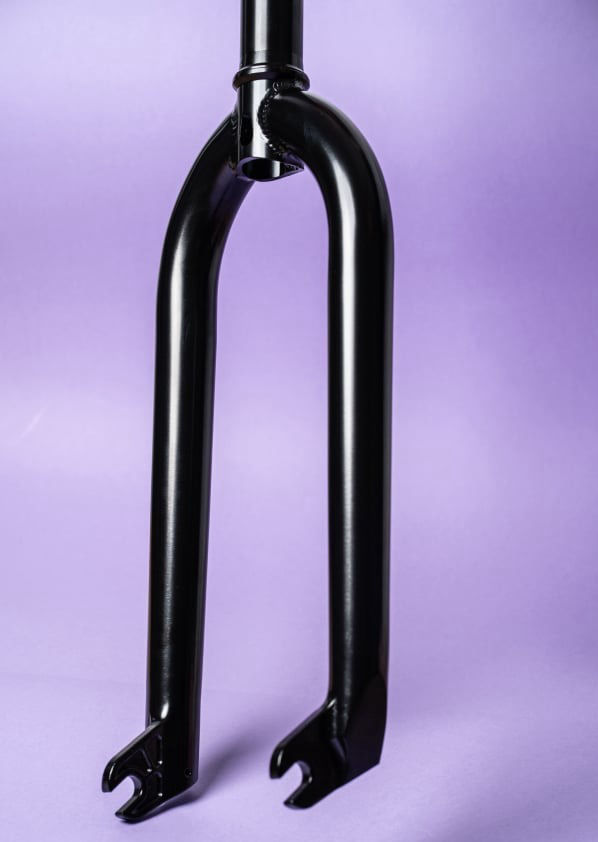

Street Fork

100% heat treated 4130 chromoly. Butted and tapered fork legs, integrated headset race, one-piece machined steer tube with special flat wall for extra strength. 4.5mm thick investment cast dropouts, 10mm only, 28mm offset. Clearance for massive tires and a bent rim.

Weight: 800g

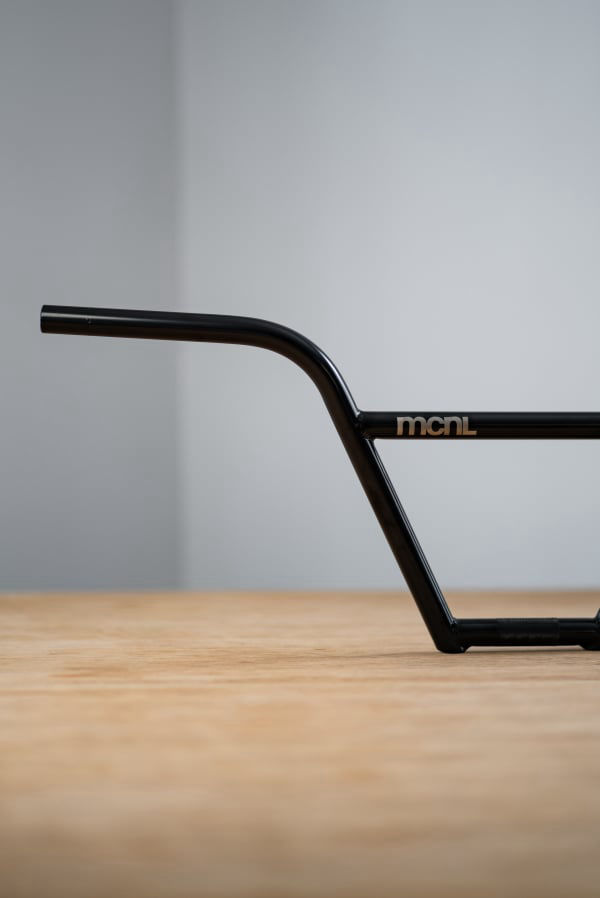

TNT 4 PC Bars 2.0

Full post weld heat treatment, 4130 Japanese chromoly. Width 29", backsweep 12°, upsweep 1.5°, size 9.35".

Weight: 967g

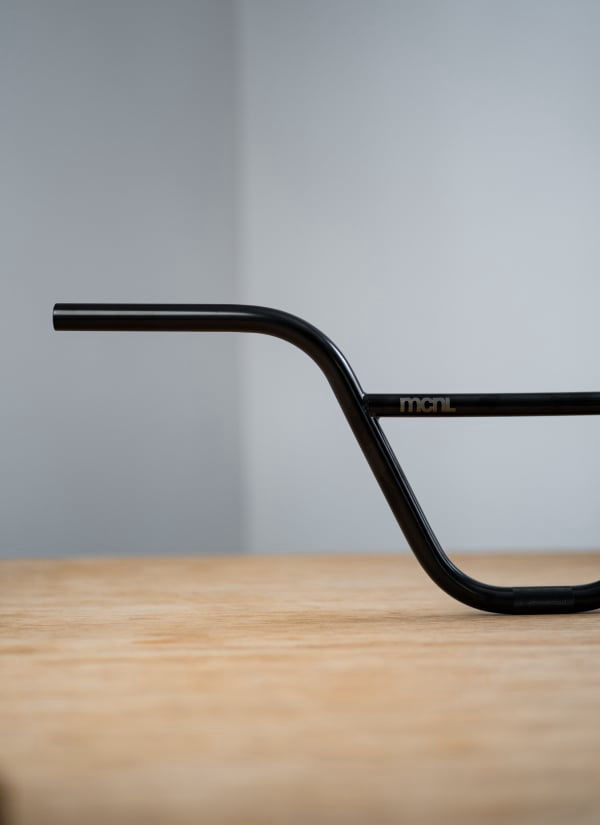

Tanarnak Bars

Full post weld heat treatment. 19mm OD cross bar, multi-butted tubing, black ED dipped to prevent corrosion, masked off stem clamping section. Width 30", backsweep 12°, upsweep 1°, size 9.5".

Weight: 812g

Tanarnak Bars

Full post weld heat treatment. 19mm OD cross bar, multi-butted tubing, black ED dipped to prevent corrosion, masked off stem clamping section. Width 30", backsweep 12°, upsweep 1°, size 9.5".

Weight: 812–879g

Apex Top Load Stem 2.0

New revised design to reduce weight. CNC machined from 6061 aluminum, 48mm reach, 28mm stack, true top load style.

Weight: 300g

Connect Crank

Not crazy light but just right. Investment cast pedal and spindle bosses, RHD or LHD compatible, gun-drilled hollow 22mm spindle, micro-drive compatible, slideable box-style arm design. 170mm only.

Weight: 28.8 oz

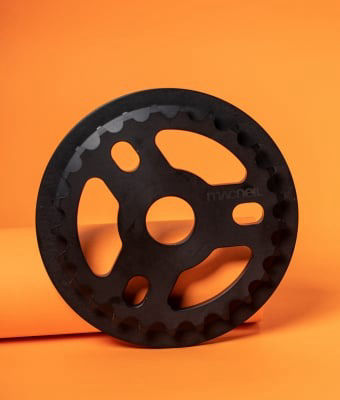

Guard Sprocket

One piece guard/sprocket combo, CNC'd from 6061 aluminum, offset teeth, 5mm thick, 22mm centre hole with 19mm adaptor. 25t.

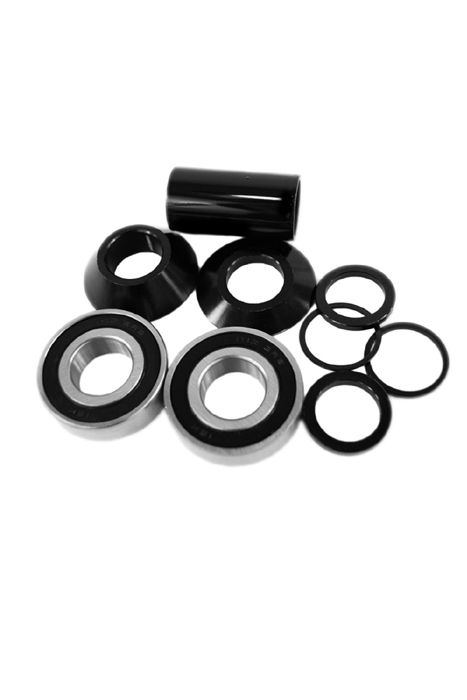

Bottom Brackets

Spanish 22mm black, mid 22mm black.

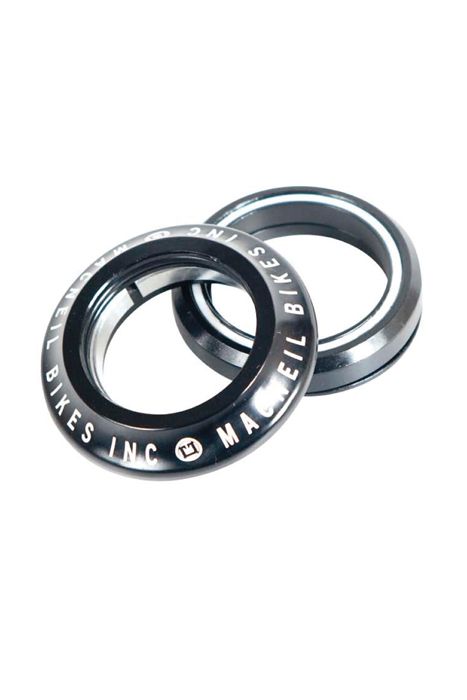

Headset

Integrated 1 1/8" headset. Alloy top cap with laser etched MacNeil logos, aluminum compression wedge and lower bearing race, Campy compatible 45° x 45°, 41.8mm OD bearings.

Weight: 60g

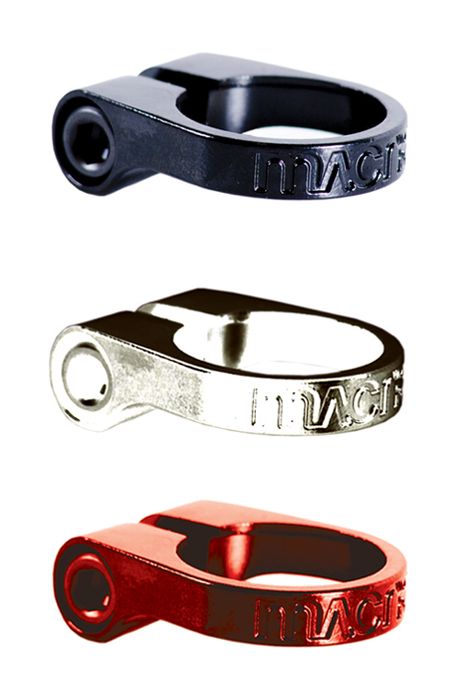

Seat Clamp

28.6mm ID (works with 25.4mm posts). Investment cast steel with MacNeil logo.

Hubs Set

Designed using patented KHE technology. One-piece 9T driver, available in either LHD and RHD, female axle, 36 hole only. Chromoly female axle with 17mm bolts broached for a 6mm allen key, high-quality Japanese body bearings.

Weight: 258g

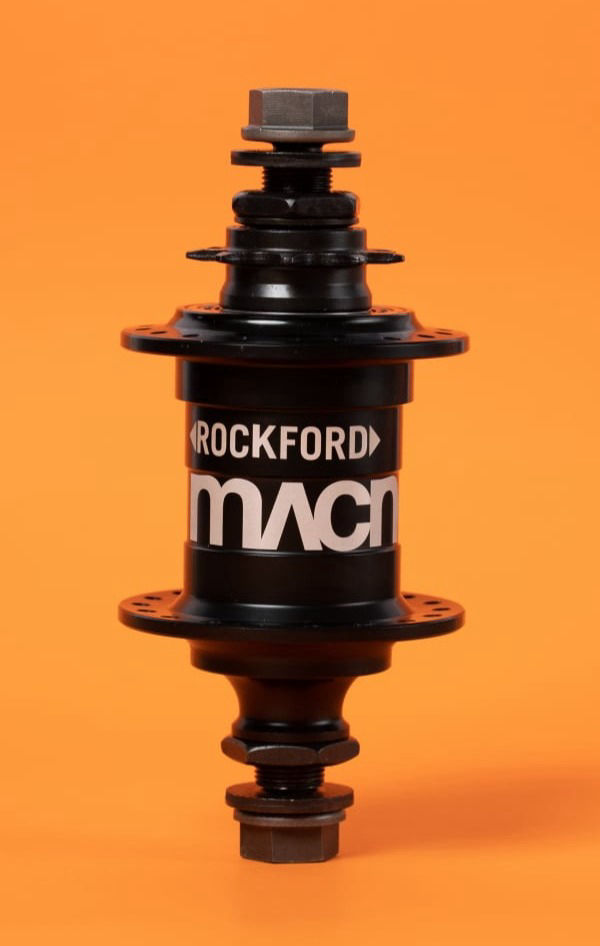

Rockford Freecoaster

Female axle, LHD or RHD. Designed using patented KHE technology, one-piece 9T driver, 36 hole only, aluminum hardware.

Network Front Hub

Chromoly female axle with 17mm bolts broached for a 6mm allen key, aluminum hardware, 36 hole only, high-quality Japanese body bearings.

Weight: 258g

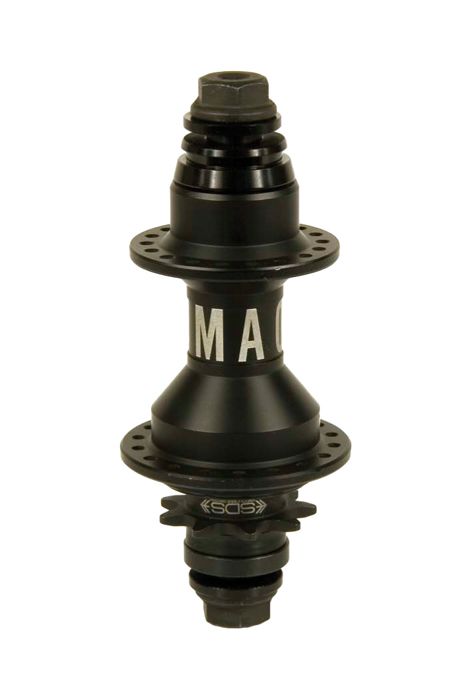

Network Cassette Hub

Switch Drive System (LHD and RHD in one hub). Chromoly female axle with 17mm bolts broached for a 6mm allen key, aluminum hardware, 9T driver only, dialed 3-pawl engagement system.

Weight: 470g

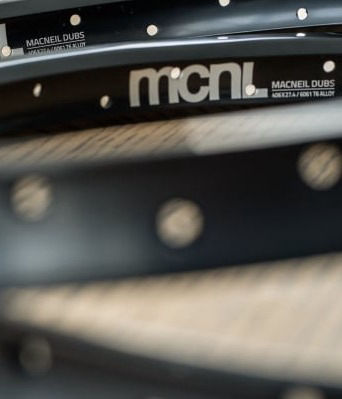

Dub Rims 2.0

One of the lightest rims on the market. Welded joint, cross lace design, 6061 T6 material, 36 hole only, double wall construction, no drilled out nonsense. ERD 392.

Weight: 446g

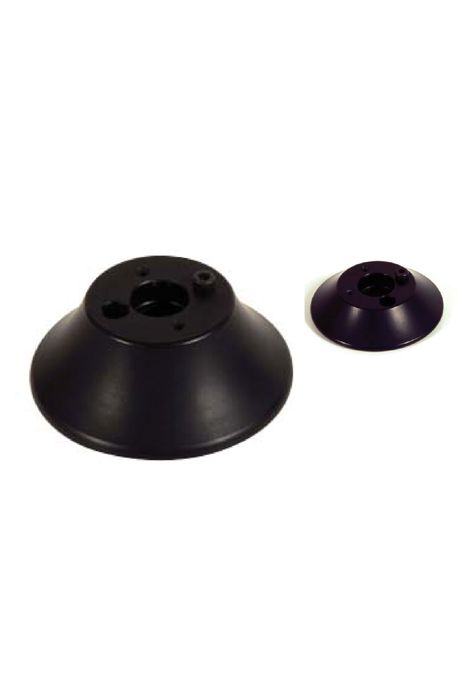

Network Hubguard

Press fit design works with Network front hubs and Rockford freecoaster hubs. Machined from 7075 aluminum for better sliding and long life.

Weight: 55g rear / 45g front

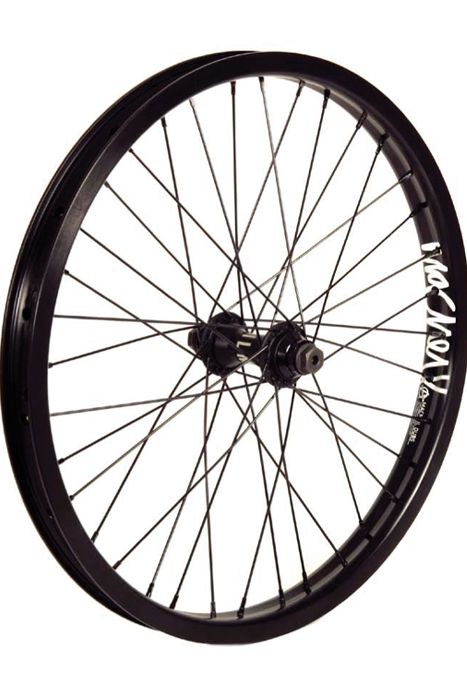

Network Front Wheel

MacNeil Dub rim, MacNeil Network hub, cross laced, female axle.

Weight: 892g

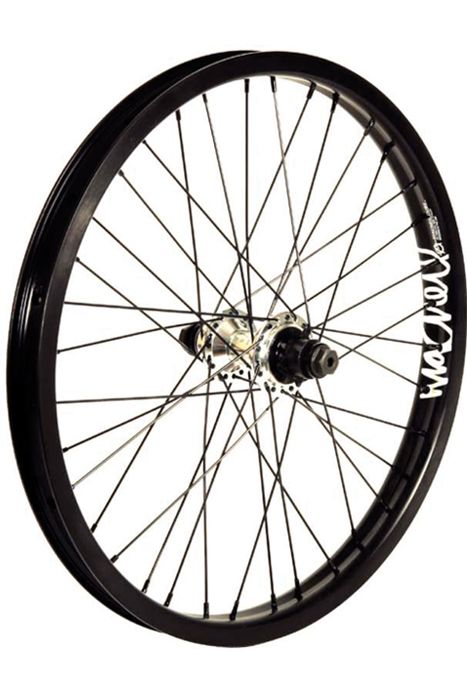

Network Cassette Wheel

MacNeil Dub rim, MacNeil Rockford cassette hub, Switch Drive System, female or 14mm straight axle, cross laced, 9T cassette only.

Weight: 1115g

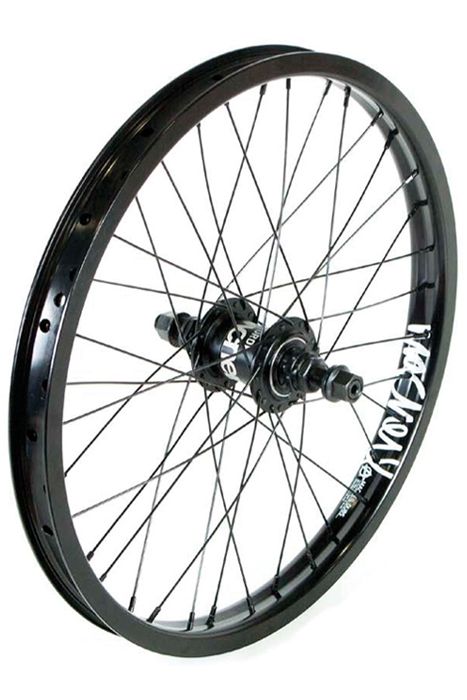

Rockford Freecoaster Wheel

MacNeil Dub rim, MacNeil Rockford freecoaster hub, available in either RHD or LHD, cross laced, female axle, 9T driver.

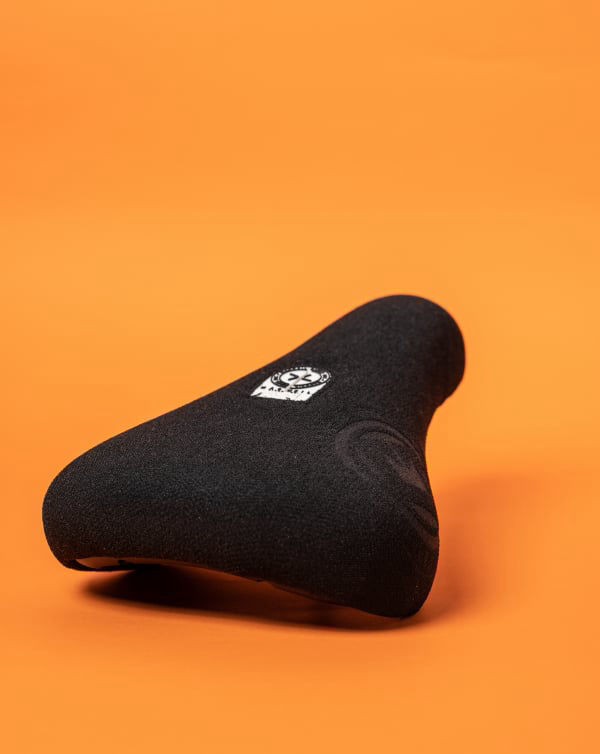

Terminator Seat

Patented pivotal technology, thick foam padding.

Weight: 300g

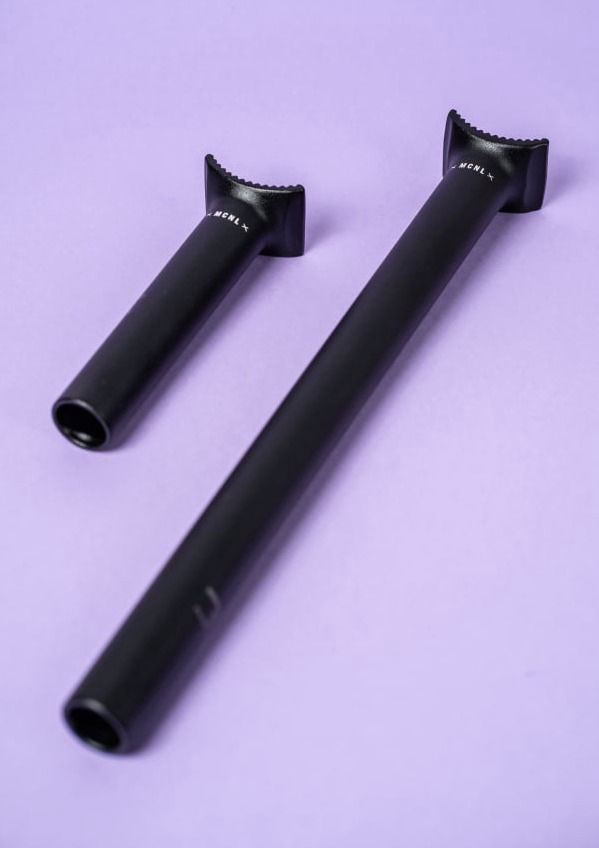

Pivotal Post

From the company that brought you the pivotal system. Pivotal patented seat technology, 200 & 320mm length, 3D forged from 6061 aluminum. Size 25.4mm & 31.6mm.

Weight: 206g

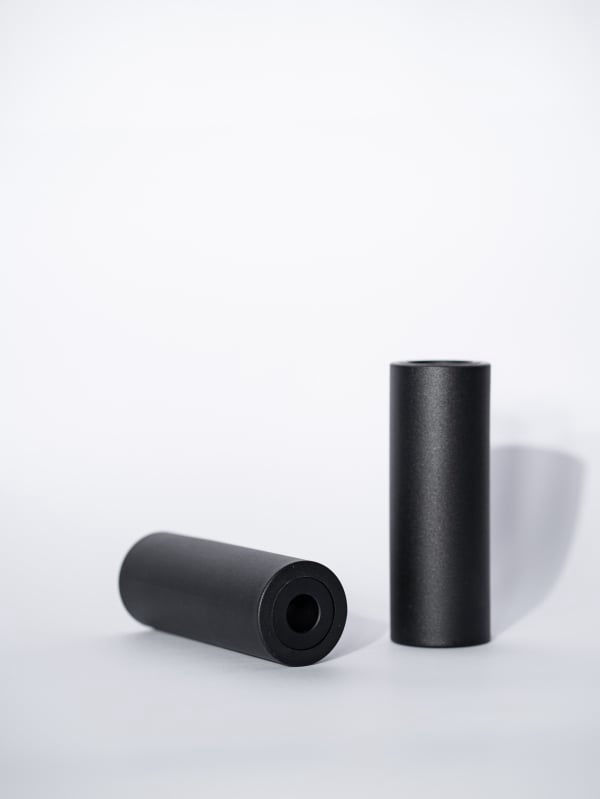

Black Ice Nylon Pegs

Fast sliding high quality nylon, lightweight alloy core, aluminum peg with plastic sleeve. 14mm with 10mm adaptor, replacement sleeves available. Length 110mm, sold individually.

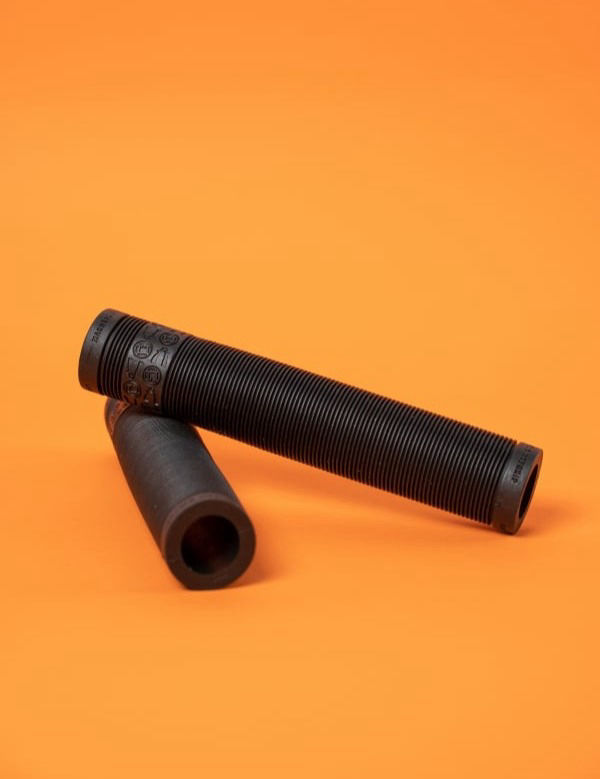

Defgrips

Soft Krayton rubber, flangeless, durable nylon barends, classic mushroom design for comfort. Length 161mm.
